Features and Benefits:
* High accuracy. ±1% or better velocity. Click here to view a NIST-traceable calibration
report
* Light weight, compact design. Handset weighs about 1.2 lbs (540 g) only
* Wide pipe size range (3/4" ~ 240")
* Suitable for all commonly used pipe materialsand liquids
* Wide flow range (-52 ~ +52ft/s), bi-directional
* Non-intrusive. Easy installation. No pressure drop.
No pipe disturbance. No moving parts
* Signal quality tracking and self-adaptation to match pipe and
fluid variations
* Rechargeable battery for 10 hours of operation.
* Built-in
data logger
* StufManagerTM PC software for data logger download & real-time monitoring (Optional)
* Self-explanatory user interface. Easy to operate
* Can be used as a remote RTU as well
* Ideal for flow survey, HVAC, flowmeter verification, etc.
Descriptions:
The STUF-200H handheld ultrasonic flowmwter is Shenitech's latest innovation for low cost, high portability,
high accuracy and non-intrusive flow measurement. It integrates state-of-the-art transit-time measurement and ultrasonic signal
processing technologies as well as the latest advancements in semiconductors.

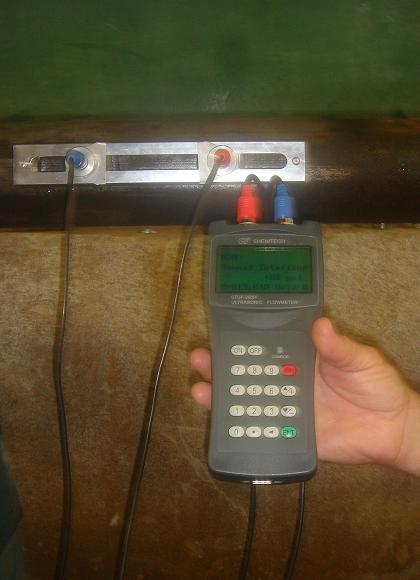

The compact, light-weight design makes the STUF-200H handheld flowmeter truly portable. The main unit weighs
about 1.2 lbs only. The rugged aluminum-alloy case allows the flowmeter to be used in harsh environment. The unique clamp-on
fixture design makes the installation very simple and no special skills or tools are required. Due to the non-intrusive nature
of the clamp-on device, there is no pressure drop, no moving parts, no leaks, and no contamination.
A data management PC software, StufManagerTM software, is developed to make the use of this handheld device
a wonderful experience. The data logger management functionality is particularly useful for users who need data logging.
The STUF-200H is ideal for general flow survey, HVAC balancing / testing, energy consumption monitoring,
water conservation management, beverage and food processing, chemical process monitoring, power plant monitoring, and other
closed-pipe applications where non-intrusive measurement is required. Benefited from our advanced digital signal processing
technology, the handheld flowmeter works reliably in both clean and opaque liquid flows.
Examples of liquids include but are not limited to varieties of water (hot/chilled water, city water, sea
water), sewage and drain water, oil (crude/diesel/fuel), chemicals (alcohol, acids, etc.), beverages, food, and water/glycol
solutions.
Specifications:
Linearity 0.5%
Repeatability 0.5
Accuracy Normally
±1% of reading for velocity above 3.3ft/s (1m/s), or ±0.03ft/s (±10mm/s) for velocity smaller than 3.3ft/s (1m/s)
Response
Time 0-999 seconds, user-configurable
Velocity
-52ft/s ~ +52ft/s (-16m/s ~ +16m/s), bi-directional
Pipe Size 3/4" ~ 240" (DN20mm - DN6,000mm)*
Pipe
Material All metals, most plastics, lined pipes
Units English (U.S.) or metric
Totalizer Three 7-digit
totalizers for totalizing net, positive, and negative flows respectively
Liquid Types Virtually all clean liquids
and liquids with minor solids (<10,000ppm). Full pipes
Liquid Temp 32˚F ~ 212˚F (0˚ C ~ 100˚C)
or 32˚F ~ 312˚F (0˚C ~ 150˚C), depending on transducer type
Security System modification lockout.
Needs access code to unlock
Display 4 x 16 characters
Digital Interface OCT digital output, can be configured
as frequency or pulse output
RS-232C: serial communication port with simplified flowmeter protocol
StufManagerTM (optional):
Windows PC software for data download and real-time data acquisition
Transducers Model M1 as the standard; other
3 models optional
Refer to Optional Transducers section for more details
Transducer Cable Standard 2' x
15' (2m x 5m). Extension cable available upon request
Power Supply 3 AAA Ni-H built-in batteries. When fully recharged
it lasts over 10 hours.
100V-240VAC for the charger
Data Logger Built-in data logger can store over 2000 lines
of data
Housing Material Aluminum alloy protective case. Suitable for normal and harsh environment
Case Size 7.9"
x 3.6" x 1.3" (200mm x 92mm x 32mm)
Handset Weight 1.2 lbs (538 g) with batteries
